The New York Harbor Railroad uses:

• NCE Powerhouse Pro 5amp system purchased from Flying Scottsman Hobbies.

  • This unit was replaced on 2016 with an identical system
• Four PSTwo Circuit breaker

• 12 Tam Valley Frog Juicers

• Tam Valley Depot Booster for the new twin deck Staging Yard

• The WiFi Throttles is running on JRMI Panel Pro installed on a Windows 10 Profession (64 bit edition).

Throttle Access Ports:

• NCE UTP Panels (12 Units)
• NCE RP02 Wireless Base Station
• WiThrottle: JMRI
  • Windows 10
    • Serial Connection to the Command Station
  • Linksys Router

Throttles:

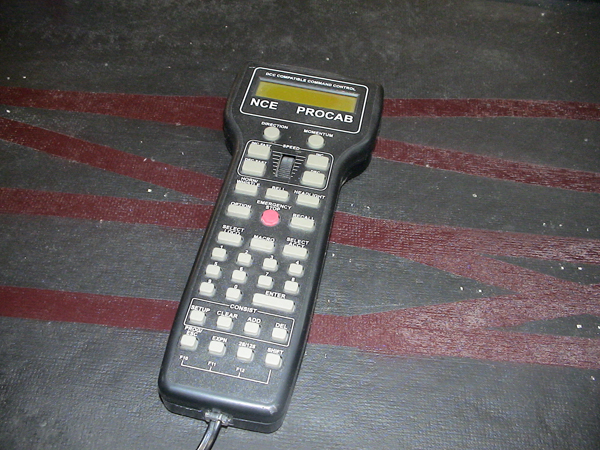

1) NCE Pro Cab "Hammerhead" (3 Units 1 Radio)

2) NCE Cab 04p (2 Units)

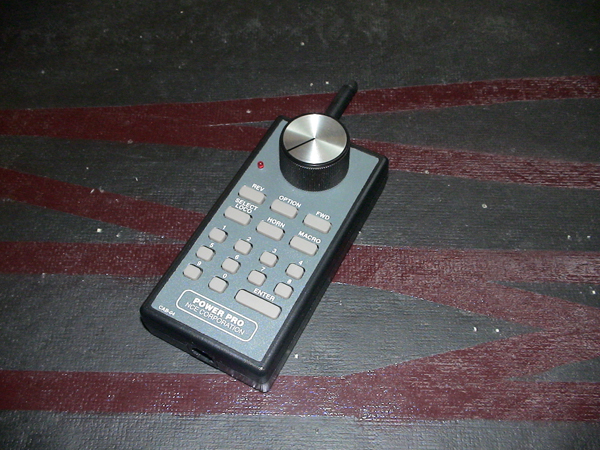

3) NCE Cab 04pr (2 Units)

4) NCE Cab 06r (3 Units)

Wiring:

• Power Drops: Red and White 22 Gauge Solid wire soldered to each rail (red to rear). Over 500 feet used so far.
• Main Sub-busses: Red and White 14 Gauge stranded wire.
• Frogs: Blue 18 Gauge stranded wire.

Circuit Breakers:

1. DCC Specialties PSTwo Circuit Breakers (2 sets).

Power Districts:

1. New York Central 30th Street
2. New York Central High Line
3. Erie 28th Street
4. Lehigh Valley 27th Street
5. Staging

Power Schematics:
